NEXTFLEX® Cell Free DNA-Seq Library Prep Kit 2.0
Designed for low sample input – 10 ng of input cfDNA required
Accelerated workflow with minimal hands-on time
Compatible with Illumina® sequencing platforms
- 产品简介
- 工作流程
- 实验数据
- 试剂组分
- 引用文献
Prepare Libraries in Only 2 Hours
The NEXTFLEX® Cell Free DNA-Seq Kit 2.0 can produce libraries from 10 ng of cell free DNA for circulating tumor DNA (ctDNA) or cell free fetal DNA (cffDNA) analysis, in two hours. This low-input library preparation kit delivers high coverage quality and reduced bias for Illumina® sequencing applications. The NEXTFLEX® Cell Free DNA-Seq Kit 2.0 can be used to prepare single, paired-end and multiplexed DNA libraries for sequencing using Illumina®platforms. The availability of up to 384 single-index single index and unique dual index barcodes facilitates high-throughput applications without compromising data integrity.
Reduced Bias and Coverage Gaps
NEXTFLEX® Cell Free DNA-Seq Kit 2.0 exhibits minimal GC bias and produces uniform coverage of difficult to sequence genome regions. This kit also offers robust ligation efficiency, resulting in greater library diversity and a larger number of unique sequencing reads. These optimizations enable investigators to obtain more information from each sequencing run.
Flexible Multiplexing Options
The NEXTFLEX® Cell Free DNA-Seq Library Prep Kit 2.0 for Illumina® sequencing is designed to be used with the NEXTFLEX® Unique Dual Index barcodes, NEXTFLEX® DNA barcodes, NEXTFLEX-96™ DNA barcodes and NEXTFLEX-HT™ barcodes. These barcodes are available in sets of 6, 12, 24, 48, 96 and 384 unique indexed adapters. All of these NEXTFLEX® Adapters are long, annealed adapters that offer an improved multiplexing workflow and flexible setup.
产品特点:
Designed for low sample input – 10 ng of input cfDNA required
Accelerated workflow with minimal hands-on time
Flexible adapter barcode options – up to 384 single index or unique dual index barcodes are available
Compatible with Illumina® sequencing platforms
Protocols available for automation on the PerkinElmer® Sciclone® and Zephyr® G3 NGS workstation
产品列表:
货号 | 产品名称 | 规格 |
NOVA-5150-01 | NEXTFLEX® Cell Free DNA-Seq Kit 2.0 | 8 RXNS |
NOVA-5150-02 | NEXTFLEX® Cell Free DNA-Seq Kit 2.0 | 48 RXNS |
NOVA-514150 | NEXTflex™ DNA Barcodes 1-96 | 192 rxns |
NOVA-514151 | NEXTflex™ DNA Barcodes 97-192 | 192 rxns |
NOVA-514152 | NEXTflex™ DNA Barcodes 193 – 288 | 192 rxns |
NOVA-514153 | NEXTflex™ DNA Barcodes 289 – 384 | 192 rxns |
工作流程:

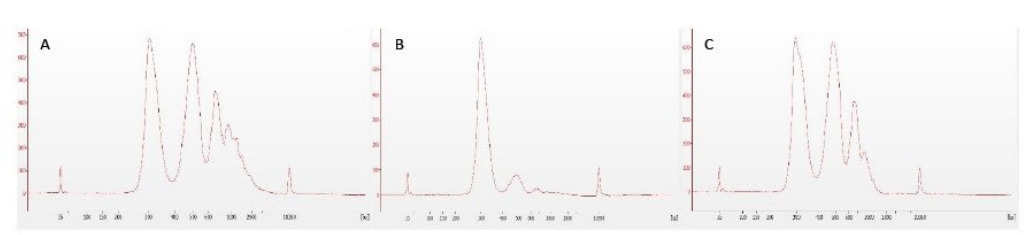

Figure 1. Nucleosome enriched libraries
10 ng input of cfDNA was used for the enrichment (or no enrichment) and prepared using the NEXTFLEX® cell-free DNA-seq kit 2.0 standard protocol with the following enrichments.
A) No enrichment
B) Mono-nucleosome enrichment
C) Mono-, di-, tri-nucleosome enrichment

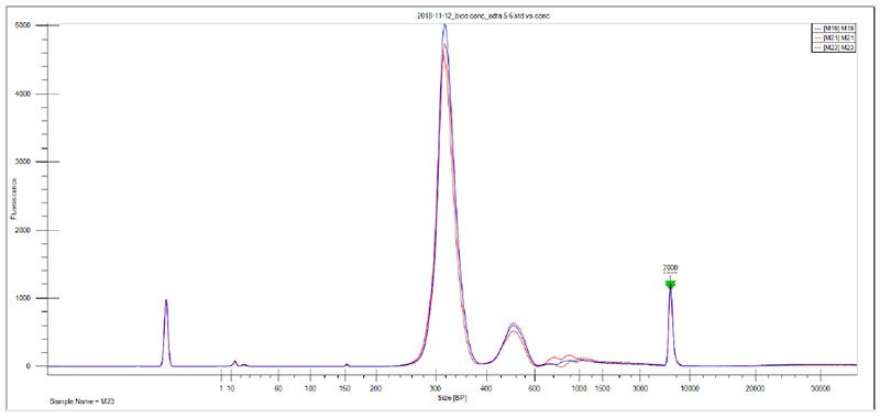

Figure 2. Automated NEXTFLEX® cell-free DNA-seq kit 2.0 libraries
cfDNA was isolated from 5 mL of plasma using the NextPrep-Mag™ cfDNA automated isolation kit on the chemagic™ 360 instrument and cleaned/concentrated to be eluted in 32 µL into the NEXTFLEX® cell-free DNA-seq kit 2.0 using 9 cycles of PCR (without nucleosome enrichment. Libraries were diluted 1:3 and run on the LabChip® GXII Touch™ HT nucleic acid analyzer.
KIT CONTENTS
NEXTFLEX® cfDNA Enrichment Beads
NEXTFLEX® End-Repair & Adenylation Buffer Mix 2.0
NEXTFLEX® End-Repair & Adenylation Enzyme Mix 2.0
NEXTFLEX® Ligase Buffer Mix 2.0
NEXTFLEX® Ligase Enzyme 2.0
NEXTFLEX® PCR Master Mix 2.0
NEXTFLEX® Primer Mix 2.0 (50 μM)
Nuclease-free Water
NEXTFLEX® Resuspension Buffer
NEXTFLEX® Cleanup Beads 2.0 1.5 mL
REQUIRED MATERIALS NOT PROVIDED
~1 ng of Cell-Free DNA in up to 32 µL nuclease-free water.
NEXTFLEX® DNA Barcodes – 6 / 12 / 24 / 48 (Cat # 514101, 514102, 514103, 514104) or NEXTFLEX-96™ DNA Barcodes (Cat # 514106)
Ethanol 100% (room temperature)
Ethanol 80% (room temperature)
96 well PCR Plate Non-skirted (Phenix Research, Cat # MPS-499) or similar
96 well Library Storage and Pooling Plate (Fisher Scientific, Cat # AB-0765) or similar
Adhesive PCR Plate Seal (BioRad, Cat # MSB1001)
Magnetic Stand -96 (Ambion, Cat # AM10027) / or / similar
Thermocycler
2, 10, 20, 200 and 1000 µL pipettes / multichannel pipettes
Nuclease-free barrier pipette tips
Vortex
NEXTflex Cell-Free DNA-Seq Kit部分引用文献:
Xia, S. et al. (2015) Genomic variations in plasma cell free DNA differentiate early stage lung cancers from normal controls. Lung Cancer. doi: 10.1016/j.lungcan.2015.07.002.
